Products
"Our mission is to provide customers with a professionally constructed farm fencing."– Hebei Jinshi Industrial Metal Co, Ltd.

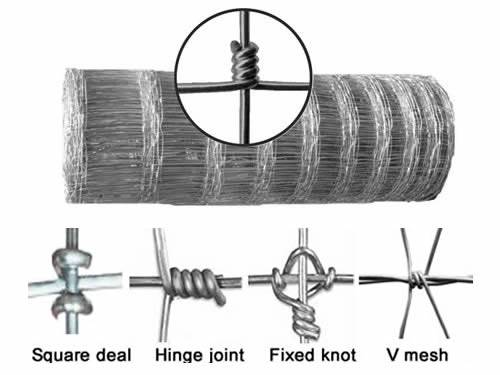

Hinge Joint Fencing
Materials: Low carbon galvanized wire, hot dipped galvanized high carbon wire, low carbon cold galvanized wire.
Surface treatment: electro galvanized or hot-dipped galvanized.
Mesh wire diameter: 1.8mm - 2.5mm.
Edge wire diameter: 2.0mm - 3.2mm.
Opening in cm: (Warp) 15-14-13-11-10-8-6; (Weft) 15-18-20-40-50-60-6.
Height: 0.8m, 1.0m, 1.2m, 1.5m, 1.7m, 2.0m, 2.3m. We can also make as the request of the customer.
Length: 50m-100m (According to the request of the customer).

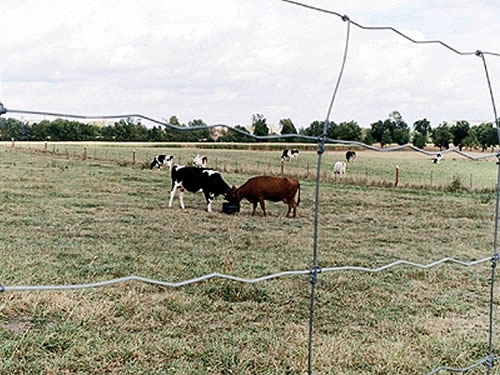

Uses: Mainly used for forest, grassland, animal husbandry and aquaculture.
Characteristics: Corrosion resistance, high tensile strength wire, durable against hit, firm structure, flat surface treatment, good flexibility and long service life, etc.
Packing: packed by plastic film and wooden pallet.
| Type | Level wire space(inch) | Unit weight (Kg/roll) | Roll Dia (cm) | |||
|---|---|---|---|---|---|---|
| Warp Wire No. | Height Inch | Hole No. | Edge wrap wire Dia(MM) | |||
| 07/32/6/2.5 | 4+4 1/2+5+5 1/2+6+7 | 19.3 | 25 | |||
| 08/32/7/2.5 | 3 1/2+3 1/2+4+4 1/2+5+5 1/2+6 | 20.8 | 25 | |||
| 08/35/7/2.5 | 3 1/2+4+4 1/2+5+5 1/2+6+7 | 21.6 | 25 | |||
| 08/40/7/2.5 | 4+4 1/2+5+5 1/2+6+7+8 | 22.6 | 25 | |||
| 08/45/7/2.5 | 4 1/2+5+5 1/2+6+7+8+9 | 23.6 | 25 | |||
| 09/39/8/2.5 | 3 1/2+3 1/2+4+4 1/2+5+5 1/2+6+7 | 23.9 | 25 | |||
| 09/49/8/2.5 | 4+4 1/2+5+5 1/2+6+7+8+9 | 26.0 | 25 | |||
| 10/47/9/2.5 | 3 1/2+3 1/2+4+4 1/2+5+5 1/2+6+7+8 | 27.3 | 25 | |||
| 10/52/9/2.5 | 3 1/2+4+4 1/2+5+5 1/2+6+7+8+9 | 28.4 | 25 | |||
| 11/56/10/2.5 | 3 1/2+3 1/2+4+4 1/2+5+5 1/2+6+7+8+9 | 30.8 | 25 | |||
| 17/79/16/2.5 | 10cm*13+15cm*2+20cm*2 | 47 | 25 | |||
